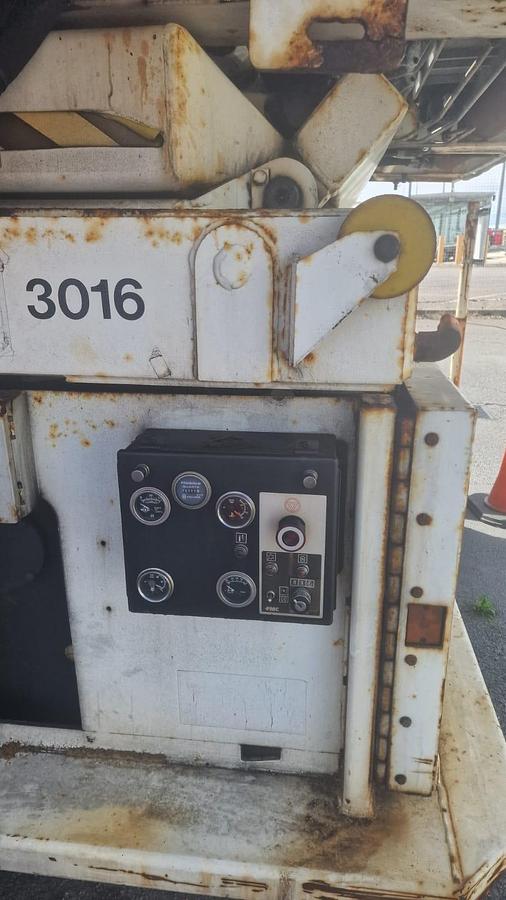

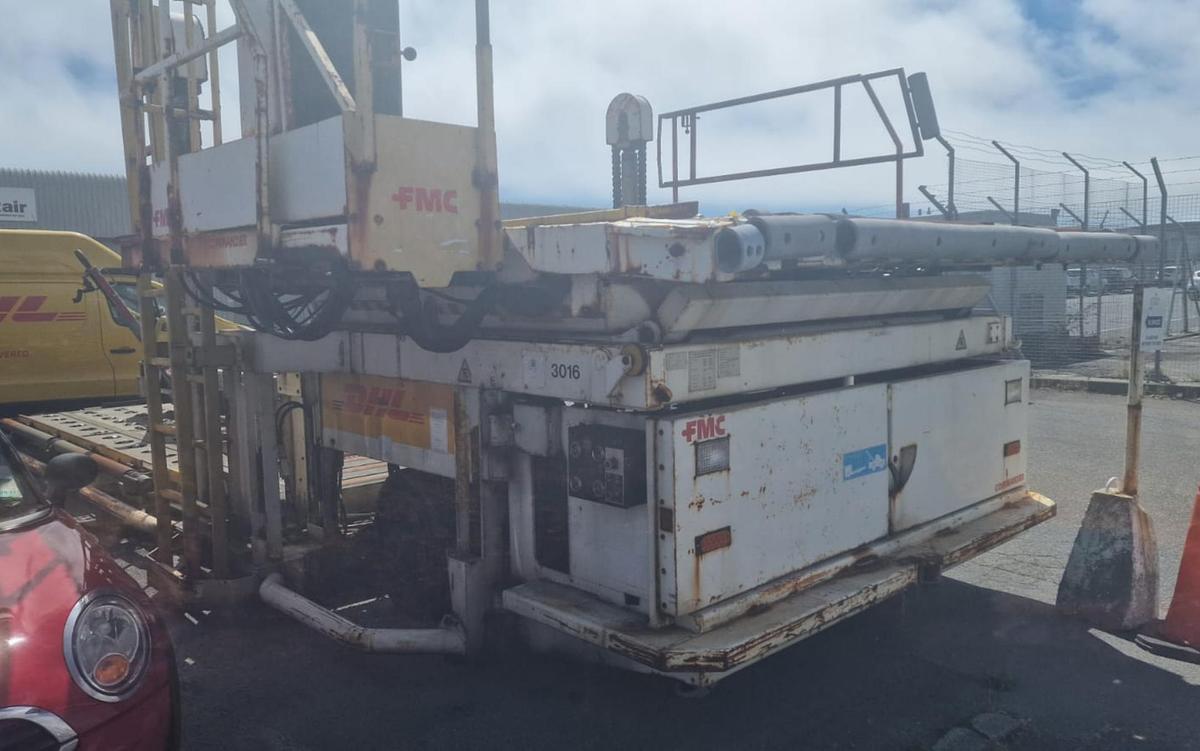

1999 FMC Commander 30

Lift Capacity

• Bridge 7,500 kg (16,500 lb) lift and transfer capacity
• 15,000 kg (33,000 lb) transfer capacity (on 20 ft. pallets)
• Platform 15,000 kg (33,000 lb) lift and transfer capacity
• Propulsion speed 11 km/hr ( 7 mph)
• Overall Dimensions
• Length 11,201 mm (441 in)
• Width (including cab) 4,394 mm (173 in)
• Height (min. with handrails) 2,997 mm (118 in)
• Wheelbase 4,953 mm (195in)
• Lift Elevation Maximum Minimum
• Bridge 5,588 mm (220 in) 1,930 mm (76.0 in)
• Rear Platform 5,588 mm (220 in) 496 mm (19.5 in)
• Platform Lift Speeds
• Bridge 4.5 – 5.5 mpm (15 - 18 fpm)
• Rear Platform 15.2 mpm (50 fpm)
• Convey System
• Surface Patented HeliRoll® deck and straight roller
• Speed 18.3 mpm (60 fpm)
• Power Unit
• Standard Engine Deutz BF4M 2012C Diesel 103 kW (138 hp) @ 2,200 rpm
• Optional Engine Cummins QSB 5.9-30-T-155 Diesel 116 kW (155 hp) @ 2,230 rpm
• Hydraulic System Load Sensing, Pressure Compensated - 235 LPM @ 241 bar
• (62 gpm @ 3,500 psi)
• Electrical System 24 Vdc, PLC controlled advanced diagnostics and control
• system, common relays
• Turning radius 11.7 m (38.5 ft.)
• Propulsion Systems 3 infinitely variable speed settings, hydrostatic drive
• Brakes Hydraulic / Dynamic with spring applied park

The Commander 30 services these aircraft:

Main Deck - Lower Lobe -

707, 727, 737, 747, 757, 747, 767, 777, MD-11, DC-10,

767, MD-11, DC-8, DC-9, L-1011, A-300, A-310, A-330,

DC-10, A-300, A-310, A-340, A-380, 767 125” wide door

A-380, L-1011
