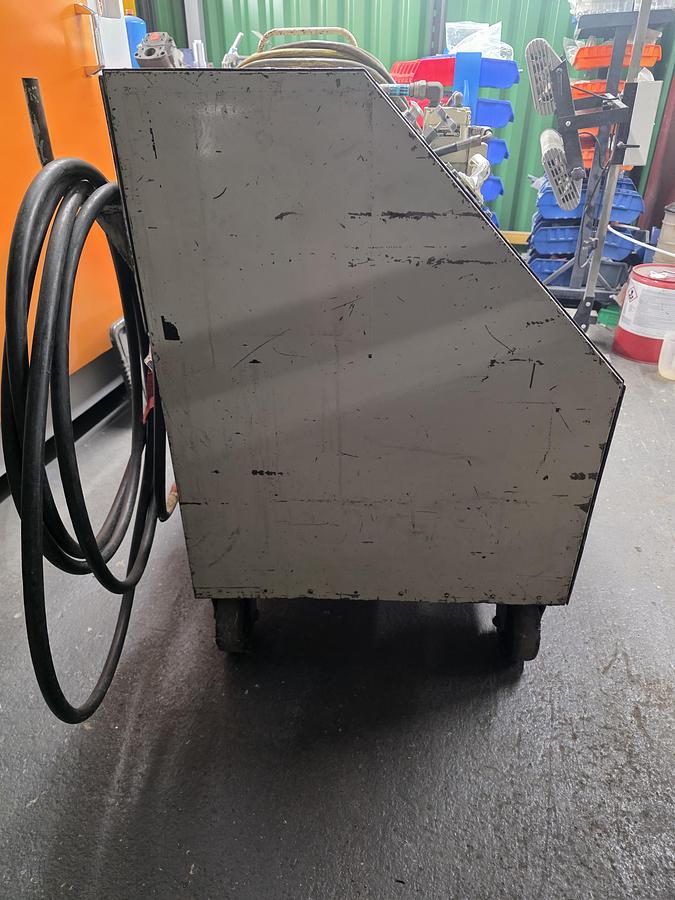

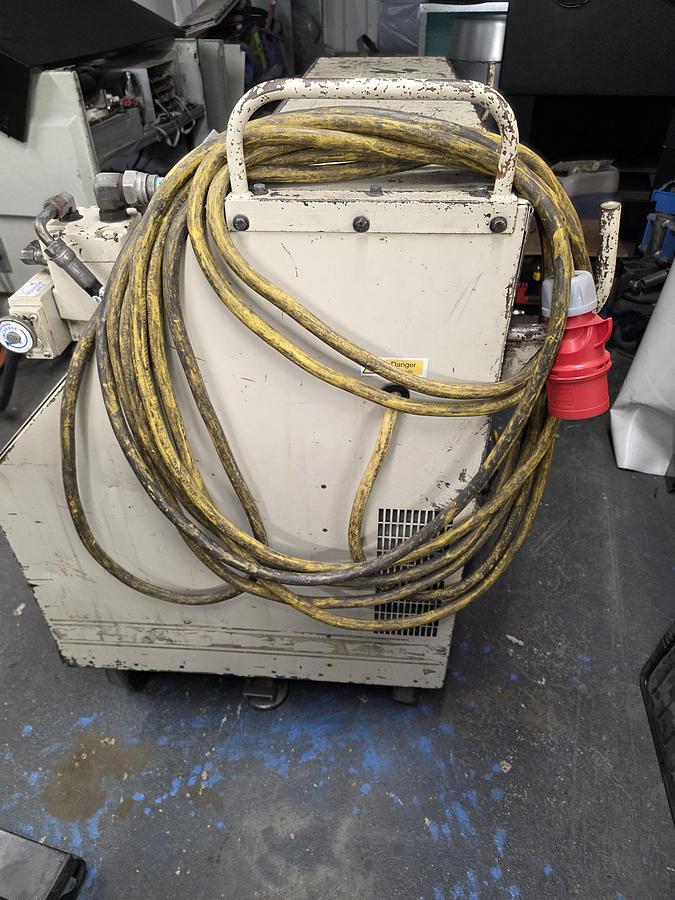

2010 Tronair HPU 51 series

Condition: OH Condition - Blasted & Painted, Calibrated Gauges, New Filter, New Hoses;

Certs: C of C (Non-OEM) & Calibration Cert for Gauge

This Tronair Hydraulic Power Unit (Series 5110 / 5111) uses MIL-H-5606 fluid with an output of 6 gallons per minute. Quick Disconnects are available as an option for each particular aircraft (if needed).

Standard Features

• 6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
• Certified pressure gauge
• 0-10 gpm (0-38 lpm) dual scale flowmeter
• 2.4 gpm (9 lpm) flow at rated pressure
• Bypass valve
• Reservoir selector valve
• 2-micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
• #8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15 ft (4.5 m) long with 37° JIC swivel connectors
• Standard 50 ft. (15.2 m) input power cord
• Heavy duty 3 phase motor
• Heavy-duty starter with overload protection and external manual reset button
• Sturdy welded steel frame with 16 gauge sheet metal cabinet
• Fluid sample valve
• Operating instructions are located on the instrument panel
• Two (2) fixed and two (2) swivel casters for easy maneuvering
• Stainless steel 13 gal (49 l) reservoir
• Heat exchanger with electric fan
• Illuminated On/Off switch
• Front access door panel for ease of maintenance
• Available Options: A, C, D, F, K, M, T, W
• Finish: Durable Powder Coat Tronair Blue
