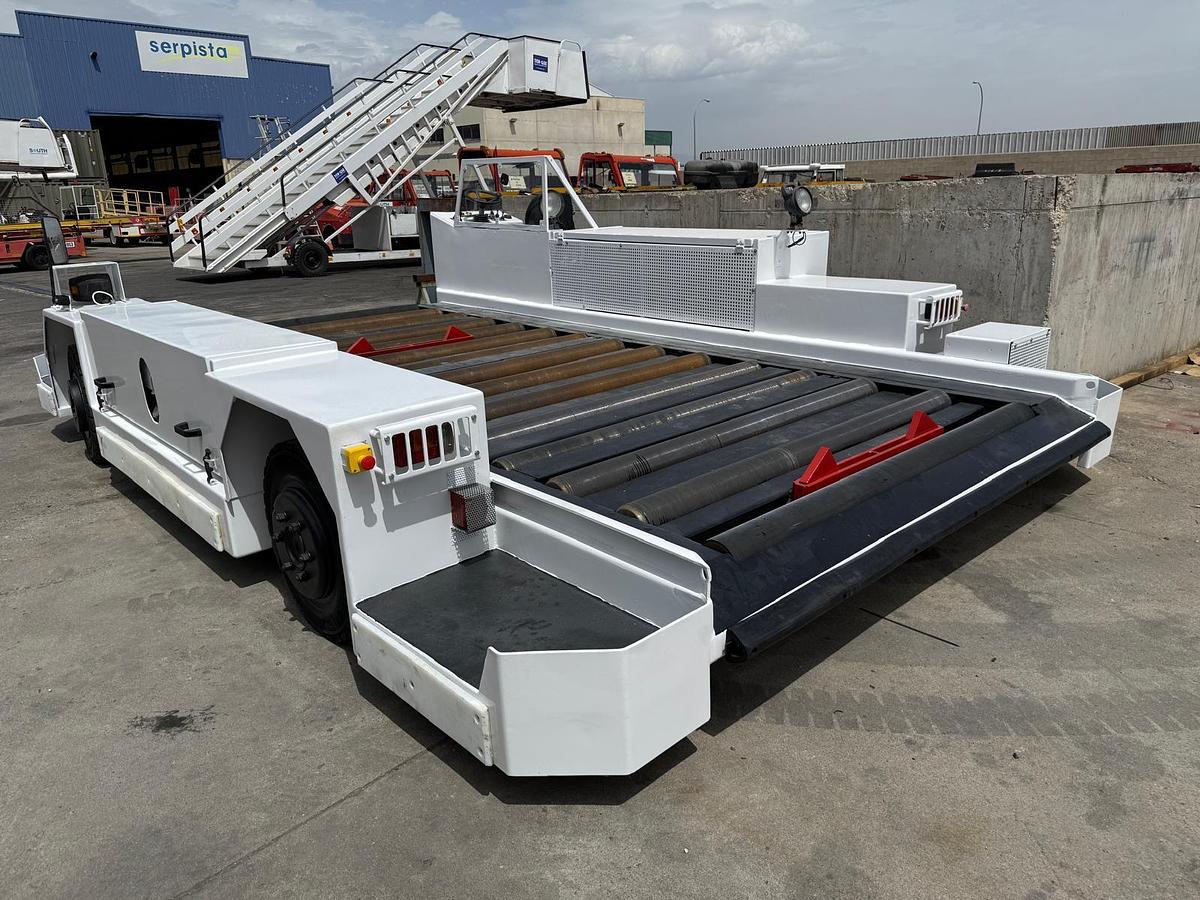

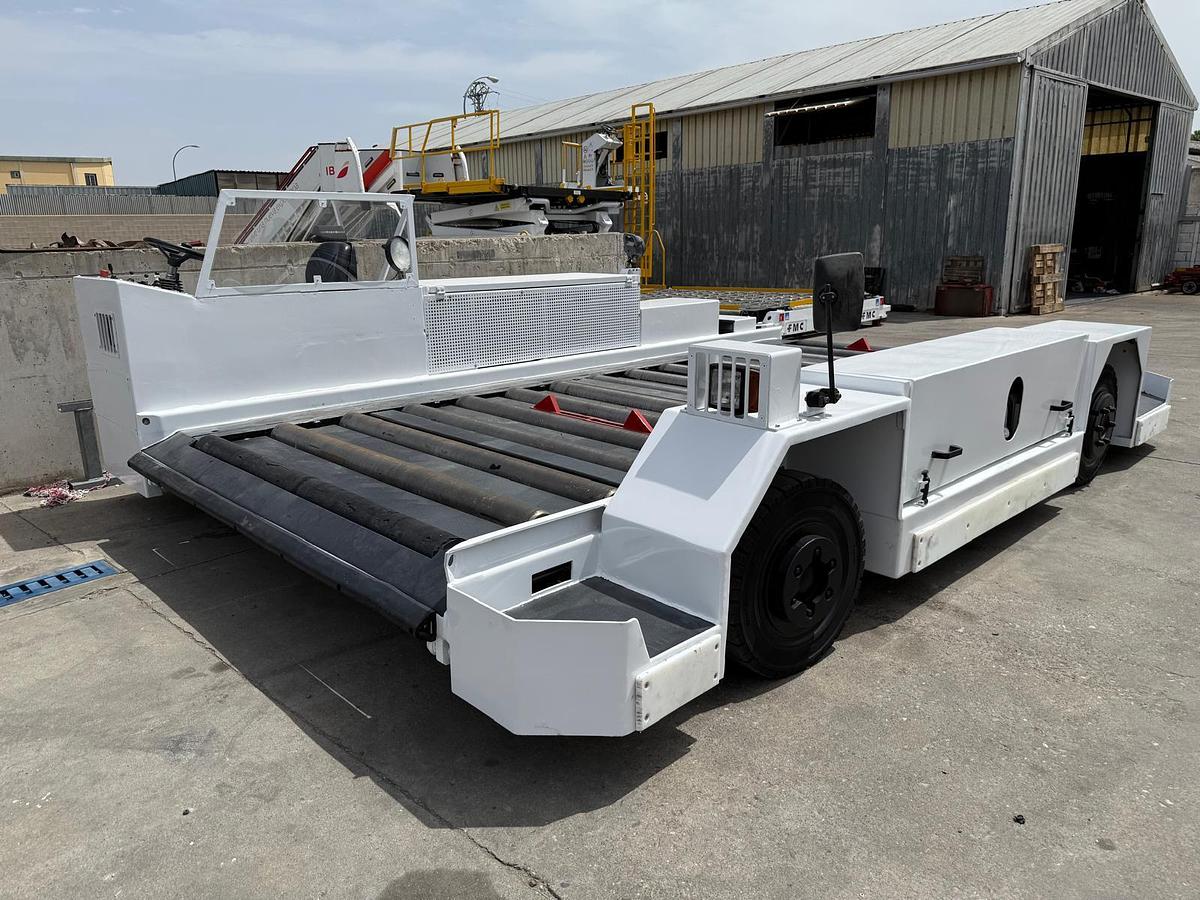

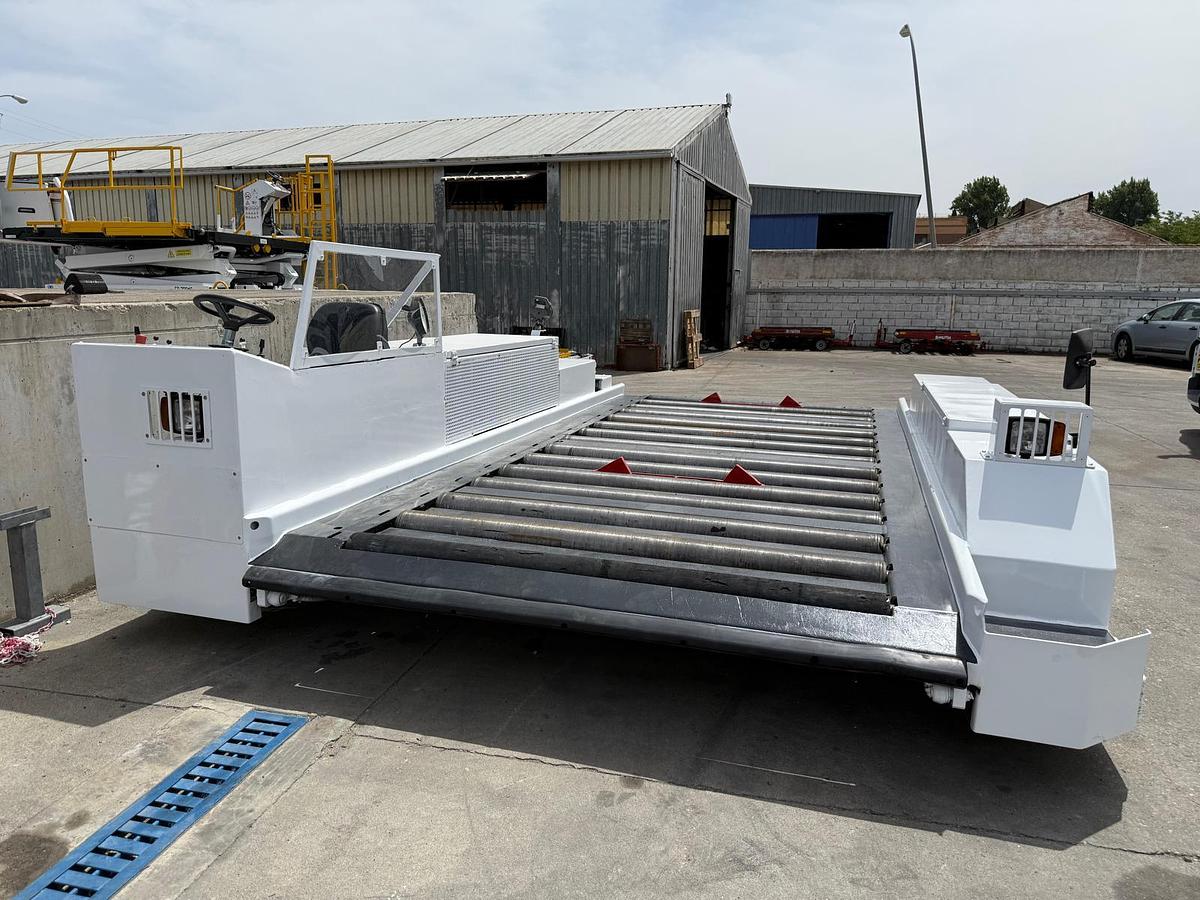

2011 Trepel transpallet

Performance TRANS 70

Dimensions L x W x H 5.600 x 3.900 x 1.500 mm (standard configuration)

Capacity 7.000 kg

Driving speed (loaded) 32 km/h

Gradability (loaded) 8 %

Loading width (between guide rails) 2.500 mm

Loading length (between stops) 3.285 mm

Loading height front/rear 450 to 690 mm / 450 to 540 mm

Ground clearance (driving position) 150 mm

Turning radius 6.700 mm

Design

Engine Deutz 4-cylinder diesel type TD 2011 L04 (COM IIIA / EPA-TIER 3)

Transmission On the rear wheels, closed circuit hydrostatic drive system

with automotive actuation

Steering Hydraulic power steering

Braking system Hydrostatic, dual circuit hydraulically powered disc brake,

additional spring-loaded emergency parking brake

Hydraulic system Central hydraulic valve block, valves fitted with control light

Electric system 24V, relay controlled
