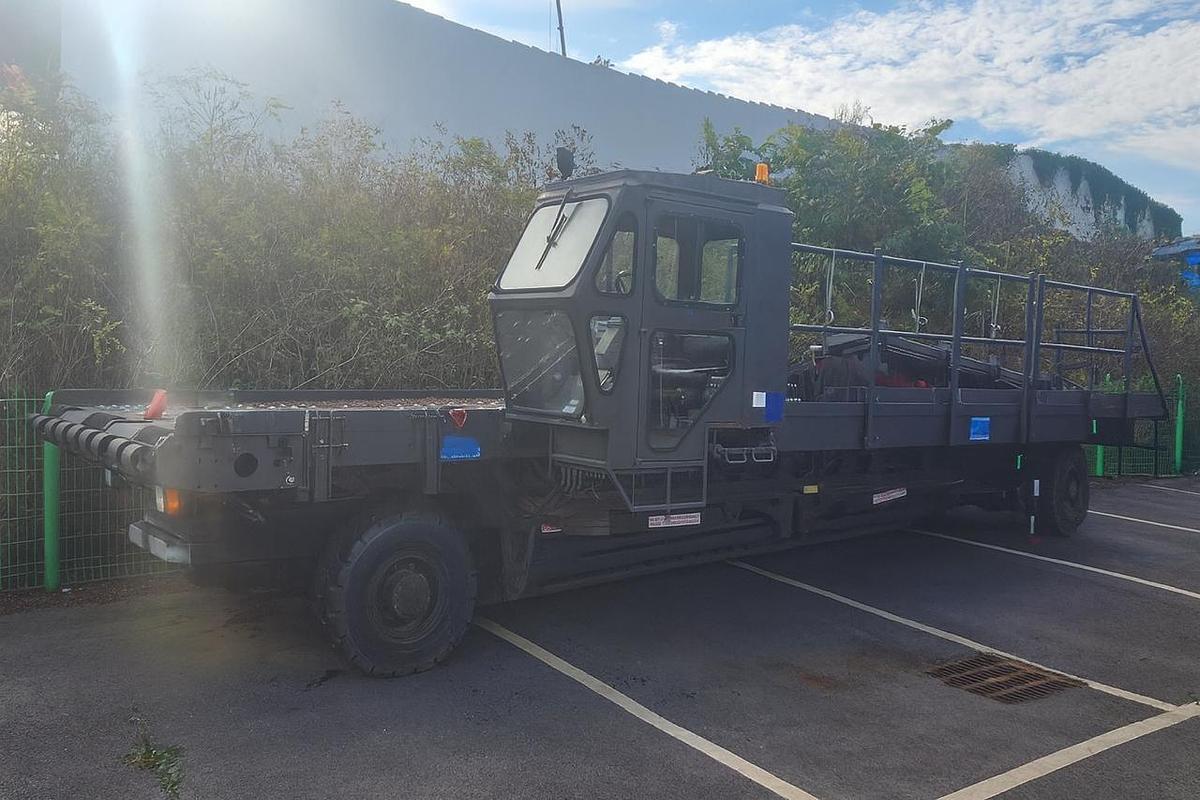

2002 AMSS MK22

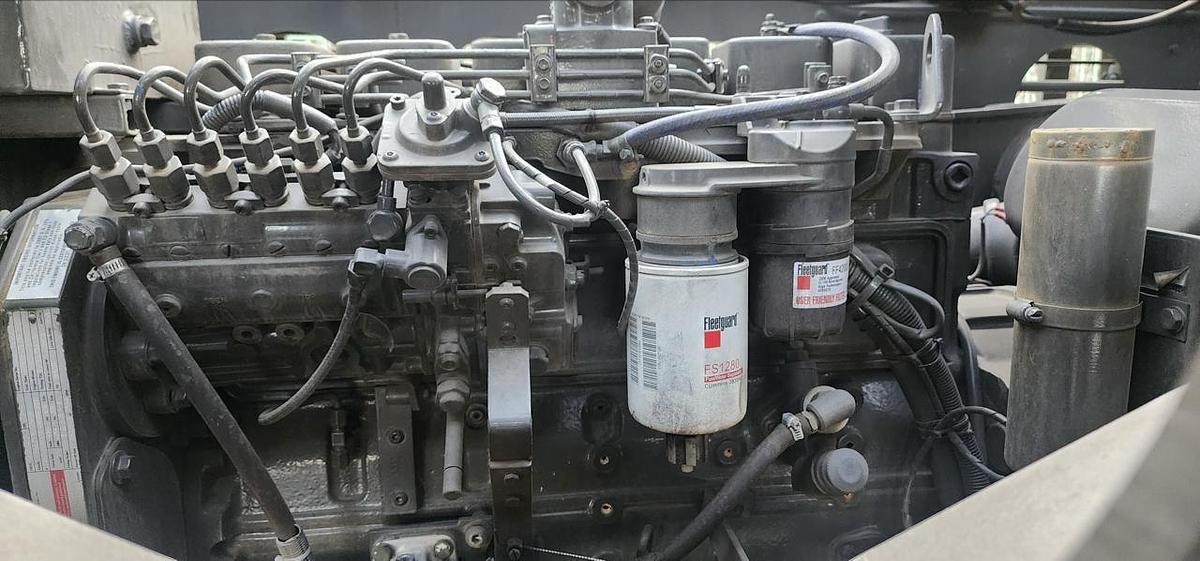

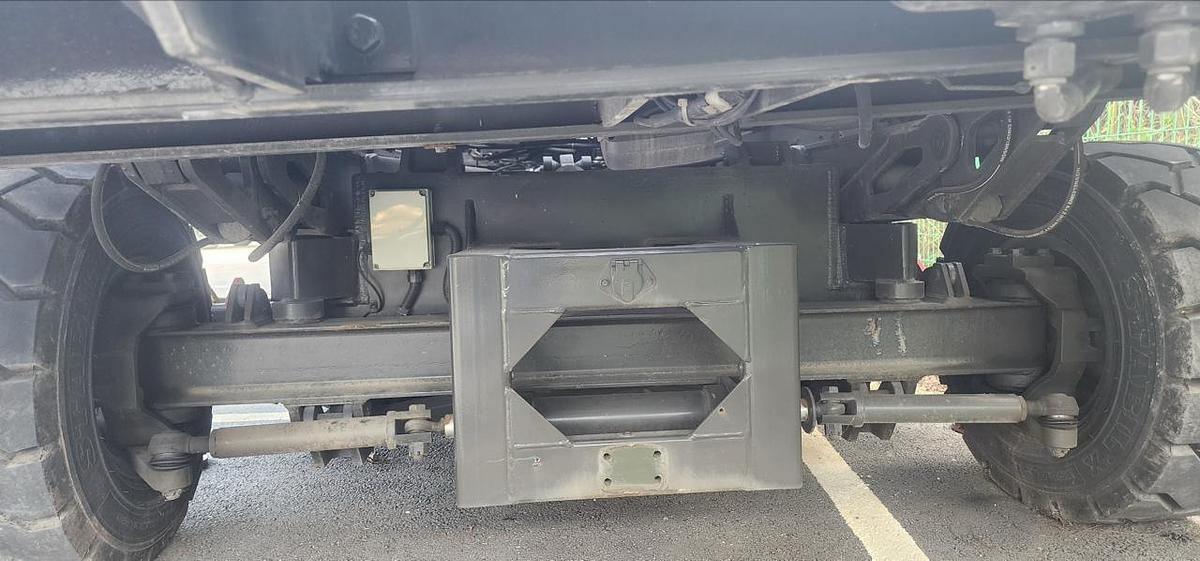

• Cummins diesel engine c/w hydraulic drive and steer
• Multi-mode steering (front / rear / four-wheel / crab)
• Fully air transportable (C130 / C17 / IL75 / AN124
• Fully enclosed cab
• Four-pallet capability / all types (ULD / air drop / loose cargo / vehicles / ISO container)

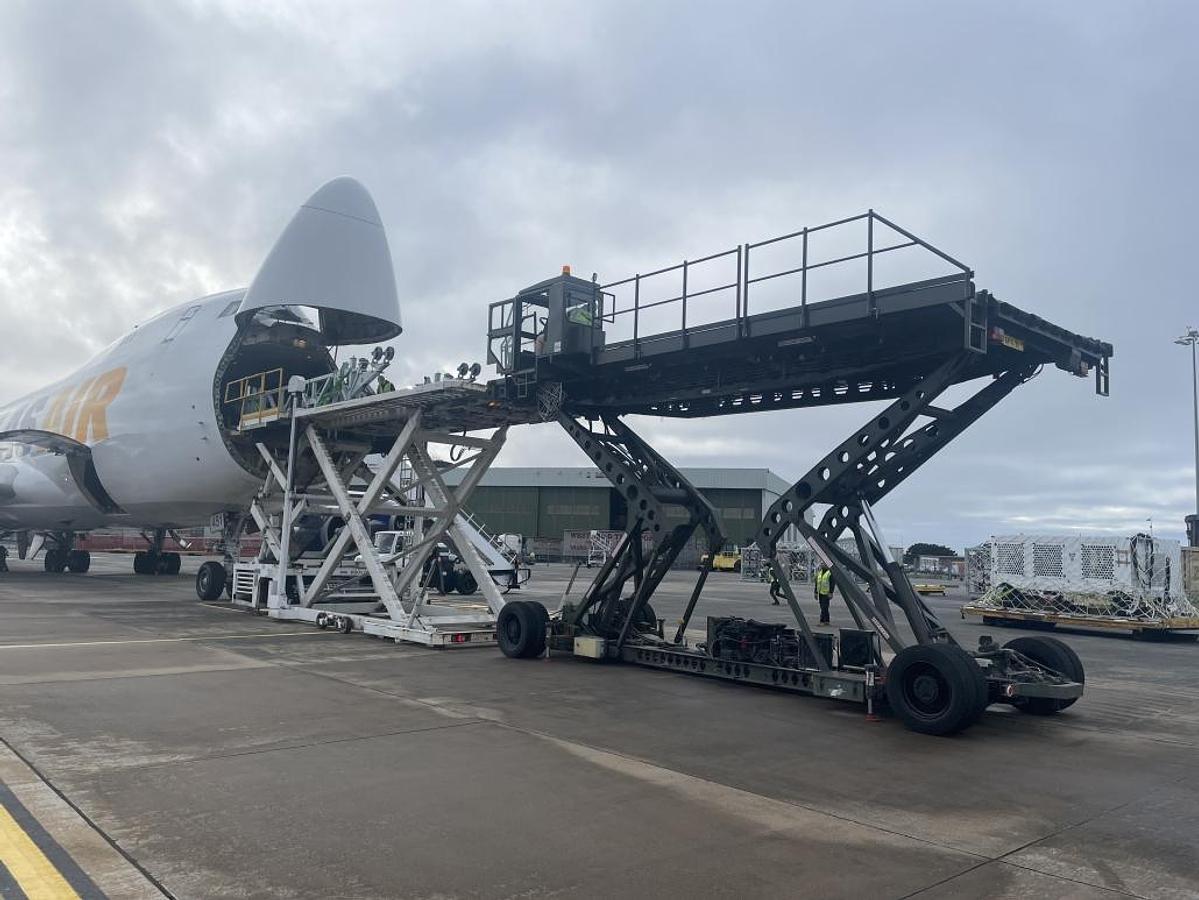

• High lift capacity – sill height from 990mm to 5,590mm
• Aircraft Capability:
• Lower deck – B747 / B757 / B767 / B777 / B787 / A320 / A330 / A340 / A350 / A380 / DC10
• Main deck – B747 / B767 / B777 / DC10 / MD11 / A300 / A330
• Military – C130 / C5 / C17 / AN124 / AN225 / IL76

• Superior Load Capacity –20,000kg (44,000lb) throughout the operating range.

• Versatile, full four pallet capability, handles all types of pallets, ULDs, air drop platforms, loose cargo, vehicles and

ISO containers.

• Dynamic and safe handling with superior traction for precise control on apron and road at speeds of up to 32kph.

• Fully compliant ‘drive on’ air-portable loader in Hercules C130, C141, C5, C17, IL76, AN124, AN225 etc. without special ramps

or shoring.

• Operational at any airhead within 15 minutes of aircraft offload.

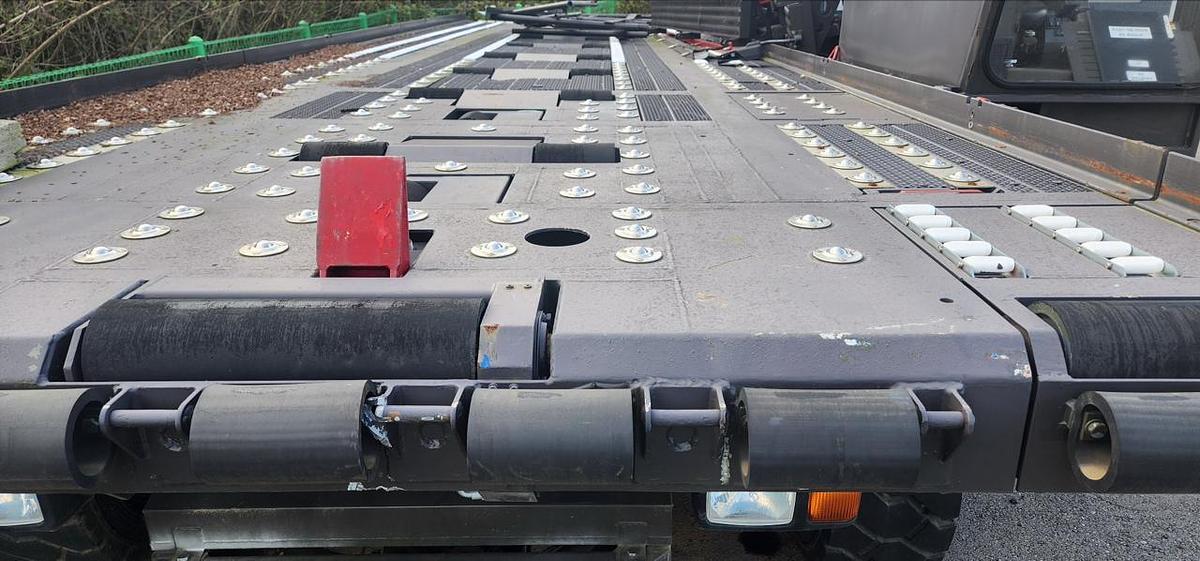

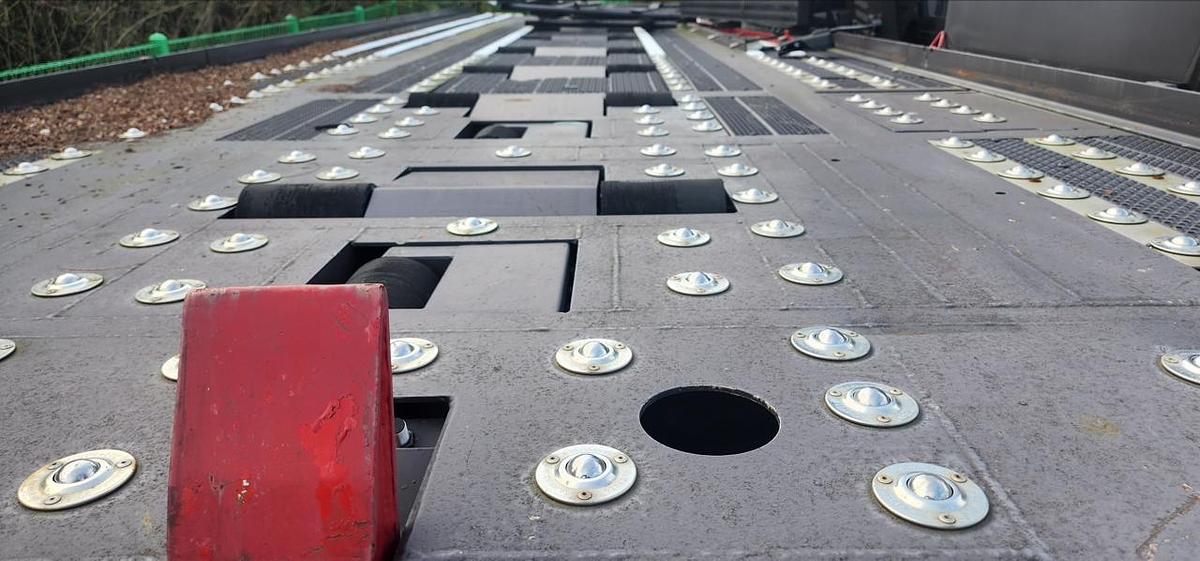

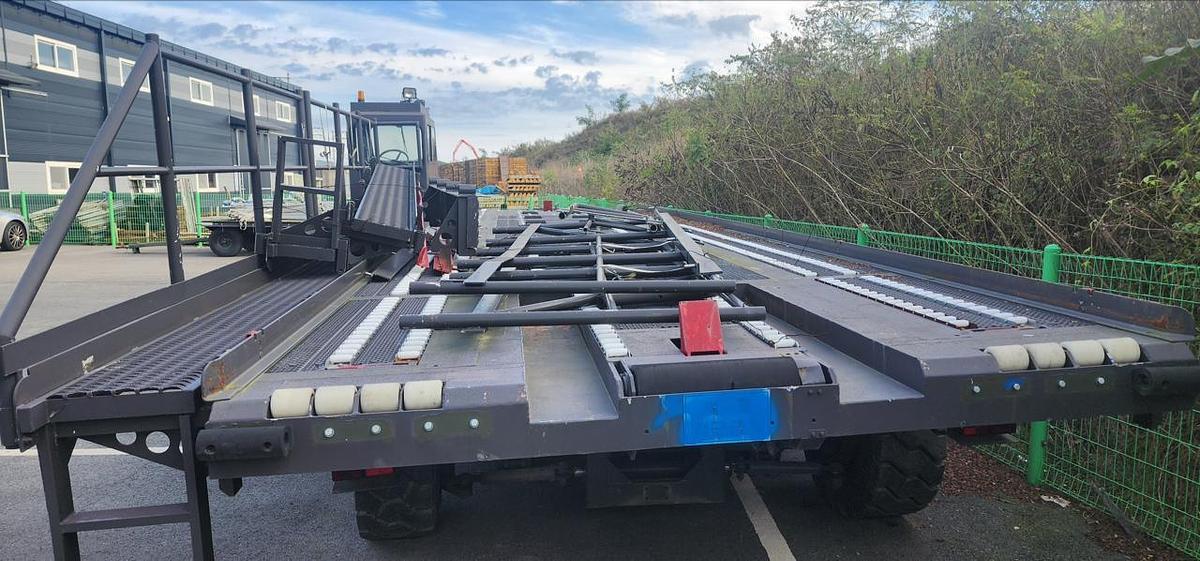

• Heavy duty load platform with zoned power drives, auto levelling, pitch and roll allowing accurate alignment and soft interface with

the aircraft on paved or uneven ground.

• Superb airside manoeuvrability via optional operator selectable multi-mode four wheel and crab steering facilities available on

demand with platform raised or lowered.

• Smooth, purpose designed responsive hydrostatic drive with automatic creep and speed limitation guaranteeing safe user

friendly aircraft approach.

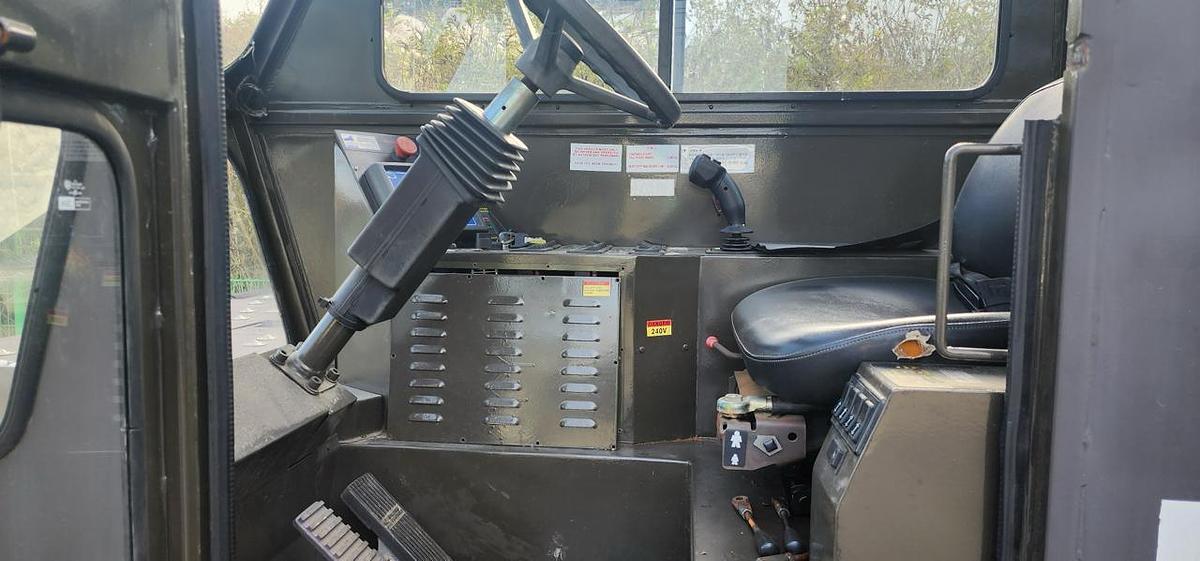

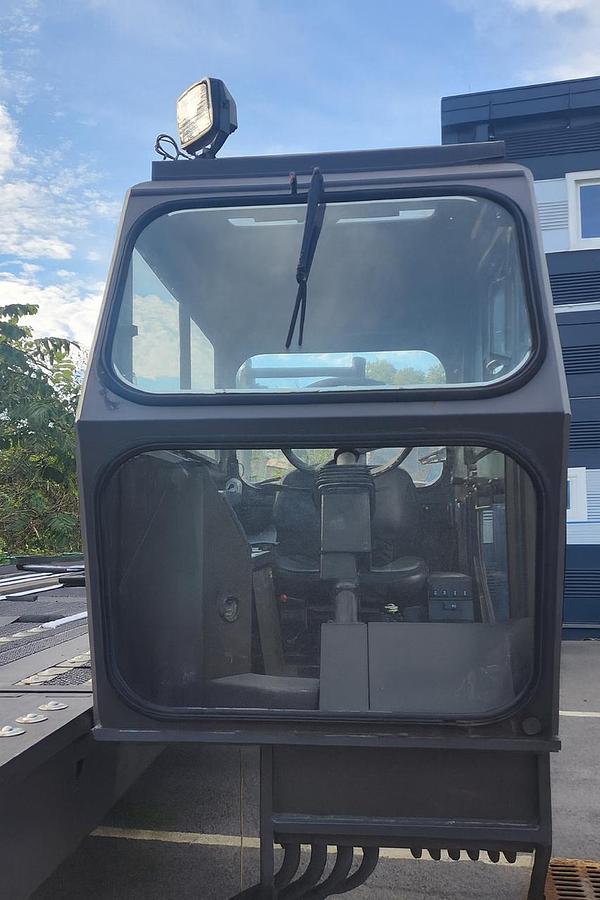

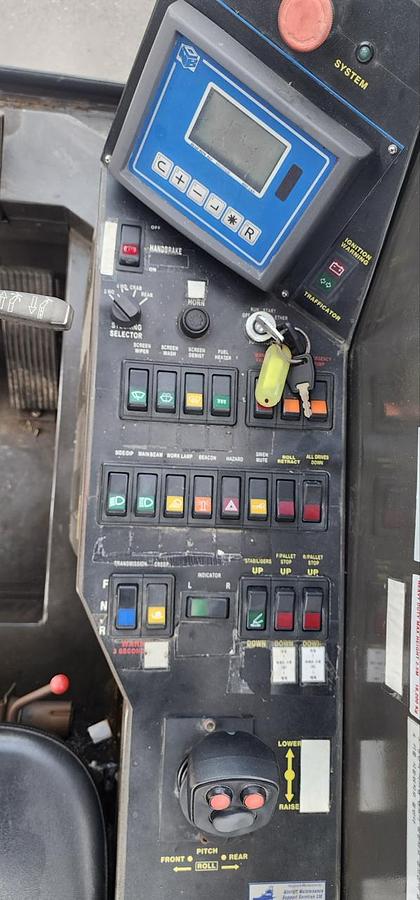

• Fully enclosed stainless steel ergonomically designed operator cab giving all round visibility with at a glance flat screen

information display console and onboard system diagnostics.

• Worldwide operation in environments of -25°C to +50°C (-40°C with optional Extreme Cold Weather Pack).

• Onboard emergency 24 volt emergency hydraulic power system.

• Engine driven tyre inflation compressor.

• Optional pallet dolly interface trailer allowing direct vehicle loading from standard civilian 20 inch pallet dolly trailers.

• Complies with all the latest Health and Safety Requirements, IATA and CEN Standards.

• Optional platform side-shift function.
