2016 JBT LEKTRO 8850

Vehicle Drive: 45.3 HP/33.8 kW, 72 VDC Traction Motor mated with Auburn/Dana 44 Differential. Limited Slip Differential, optional.

Motor Speed Control: EV-200 LX SCR with On-Board Diagnostics.

Speed controlled by Foot Throttle.

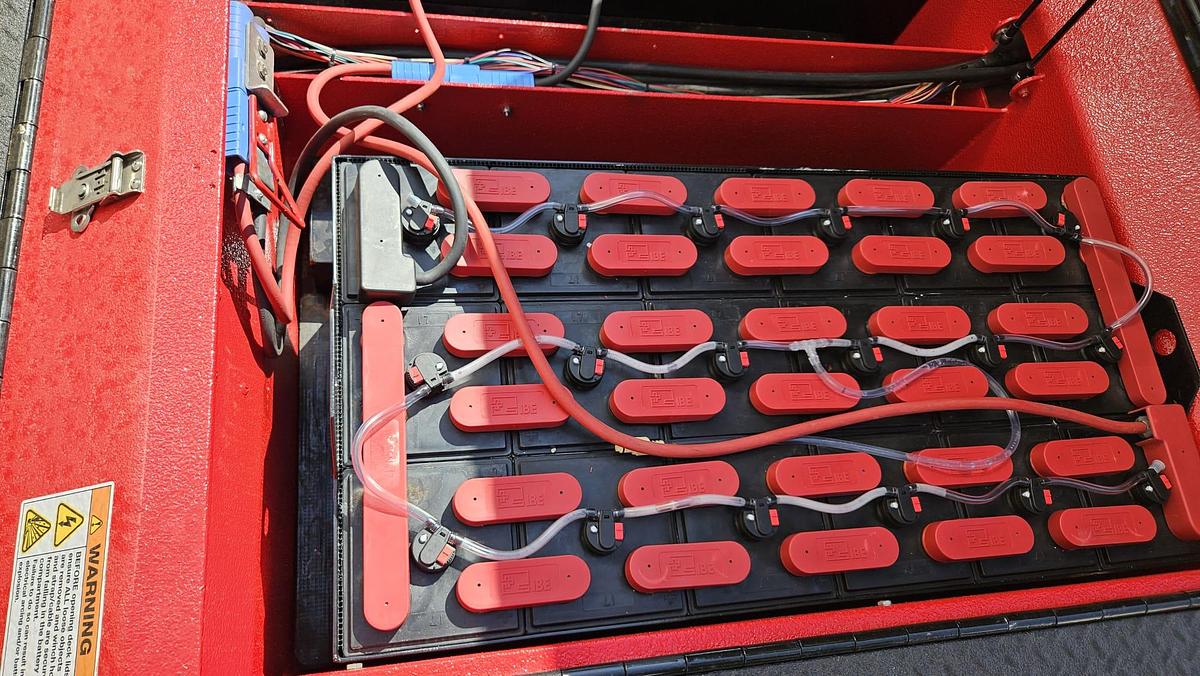

Batteries: Two 36 VDC Industrial, 440 AMP-HR Batteries (6 hr rate),wired in series with Single Point Watering System. 550 AH, optional.

GPU: Built-in Independent 12/24/28 VDC / 1175 CCA Batteries and Charging System, optional.

Motive Battery Charger: External Fully Automatic 90 AMP DC / 208-480 VAC / 60 Hz / 3-PH Charger. 100 AMP and/or 50 Hz, optional.

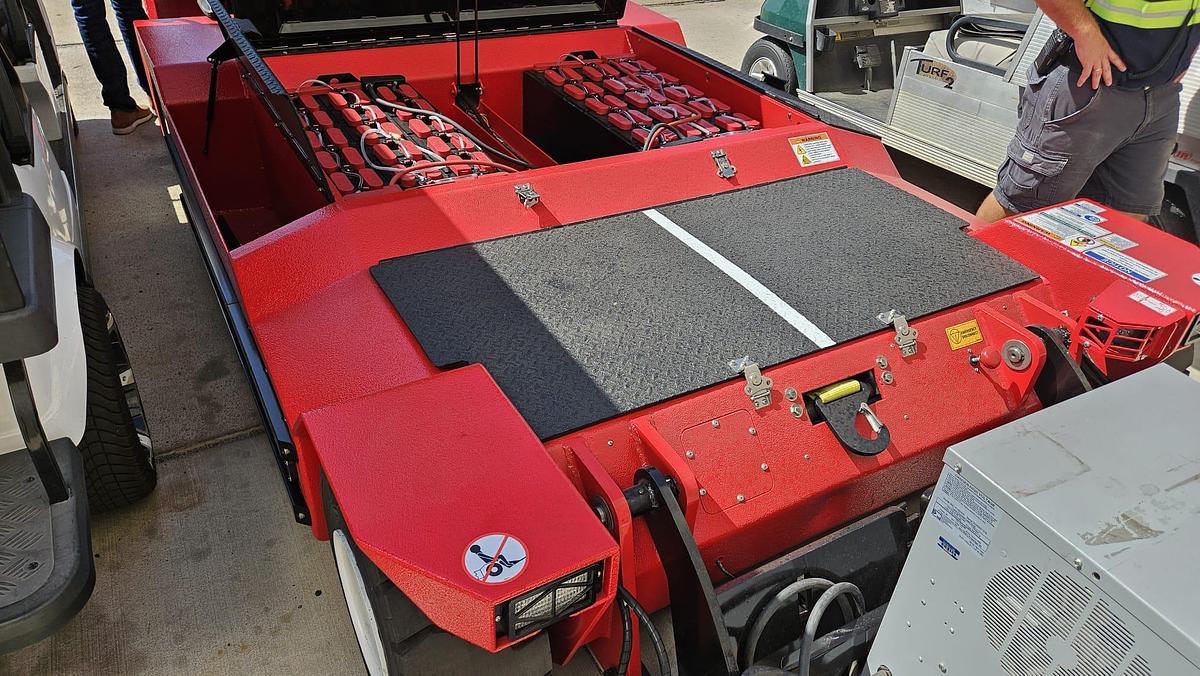

Nose Gear Lift Cradle: Patented Universal Nose Gear Lift Cradle activated by an Electric/Hydraulic Pump Assembly. Aircraft Selection

System and Patented Torque Sensing Turntable Cradle Deck, optional.

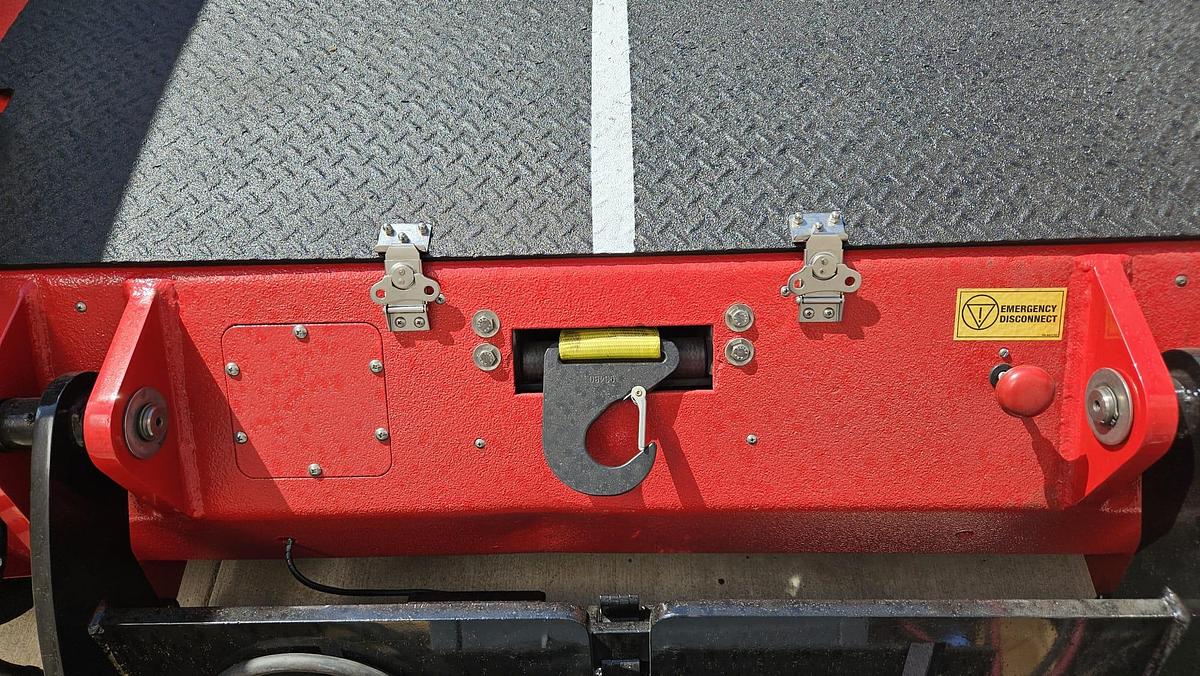

Winch: Heavy-duty Hydraulic Winch with Automatic Safety Cut-Off.

Winch and Strut Straps included.

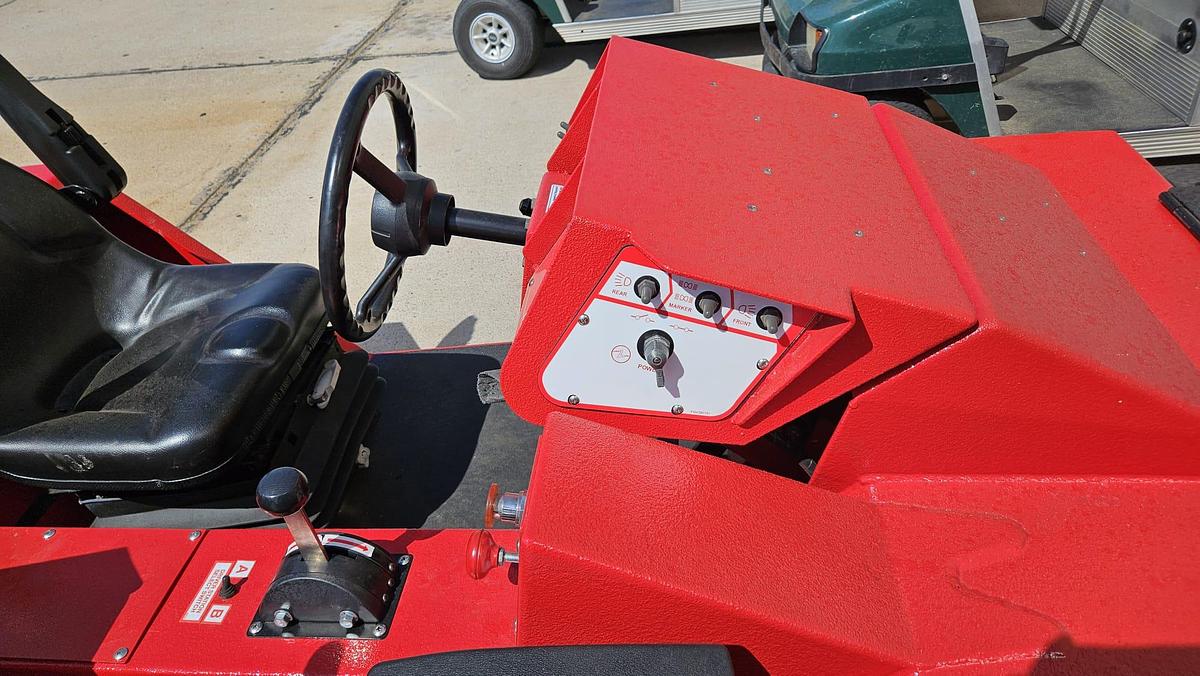

Steering: Electric/Hydraulic Power Steering controlled through Automotive-type Tilt Wheel requiring minimal effort with very responsive steering action. Automatic Timer turns off power when tug not in use, ncreasing battery shift life.

Service Brakes: Foot Operated Hydraulic Disc-Type Service Brakes utilizing

􀁗􀀑

Parking Brake: Hand activated Electric Switch controlling Spring Applied/Hydraulic Released Calipers mounted on each Service Brake Disc.

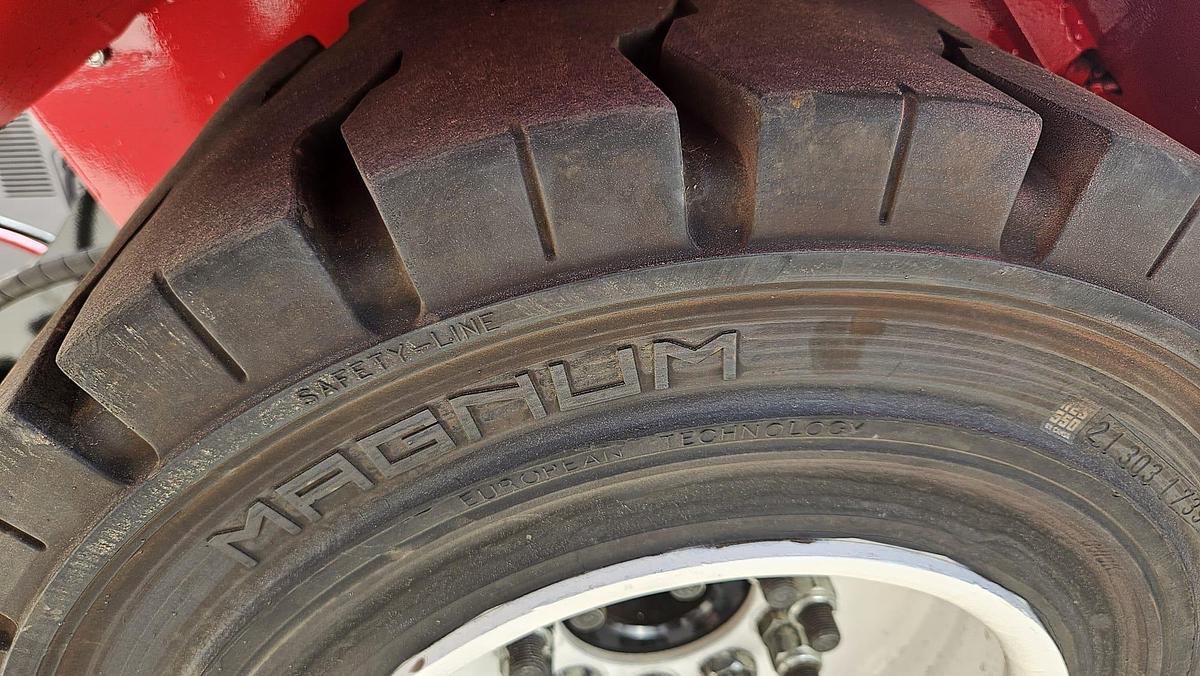

Drive Tires: Single 23 x 10 x 12 Solid-Pneumatic Traction Tread with

Siping. Chains, optional.

Steer Tires: 21 x 8-9 Solid-Pneumatic Traction Tread mounted to a

Fully Suspended Steer Axle.

Lighting: Dual Forward and Aft Headlights, Four Flashing Amber

Running Lights and Amber Strobe Light mounted Center Rear. Brake

Lights/Turn Signals and LED Bulbs, optional.

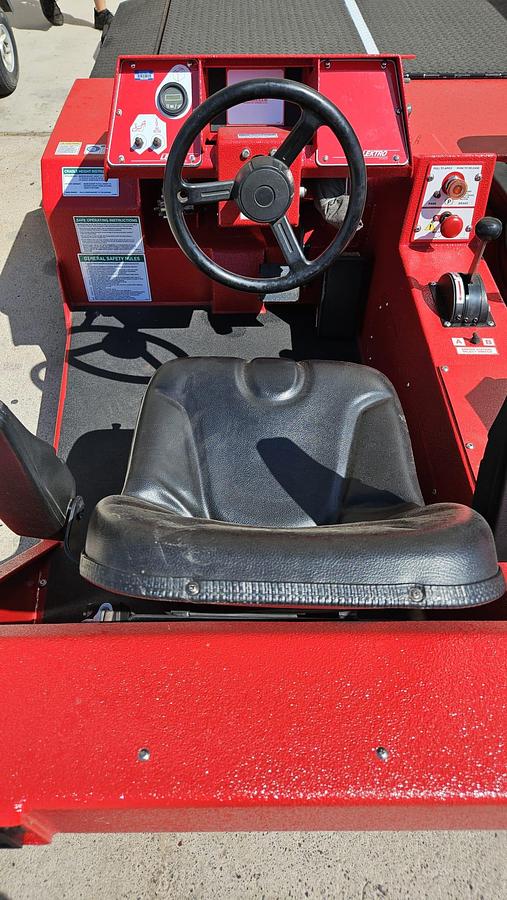

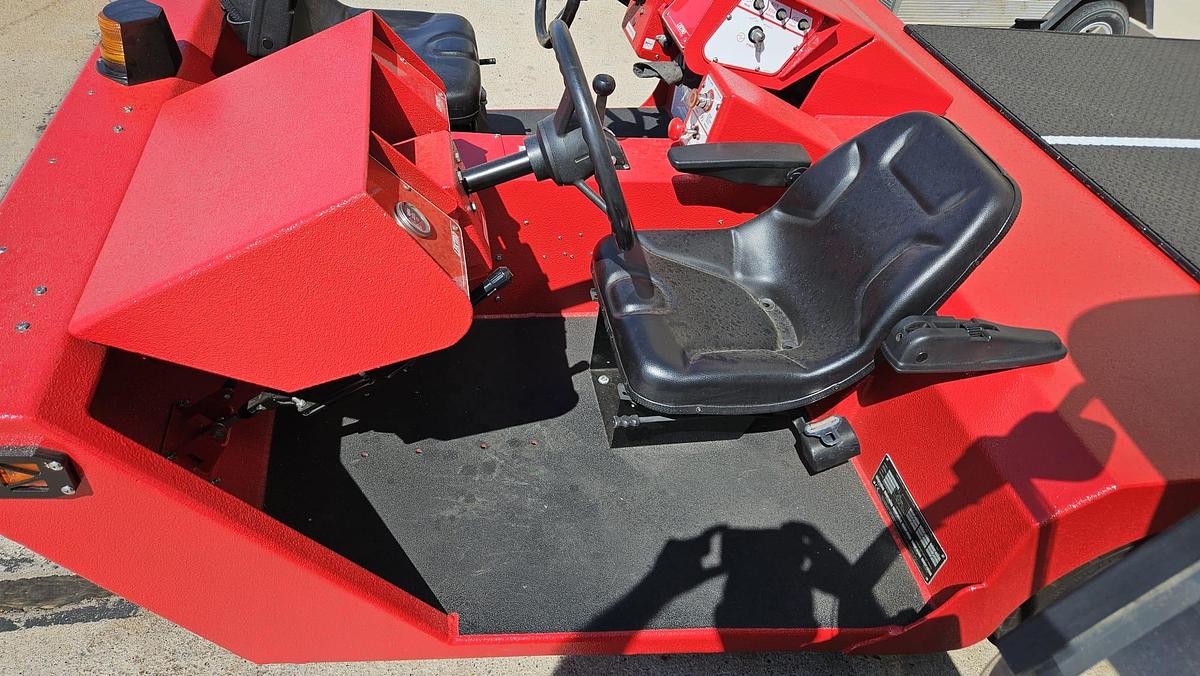

Operator’s Compartment: Operator and Passenger Seats, Forward

Facing, Premium Grade, Molded Polyurethane including Armrests.

Operator’s Seat features a Fully Suspended, Adjustable setting for

height, fore/aft and weight. Seat Belts, Dual Facing Operator’s Helm

and Cab with Heater, Defroster, and Windshield Wipers, optional.
