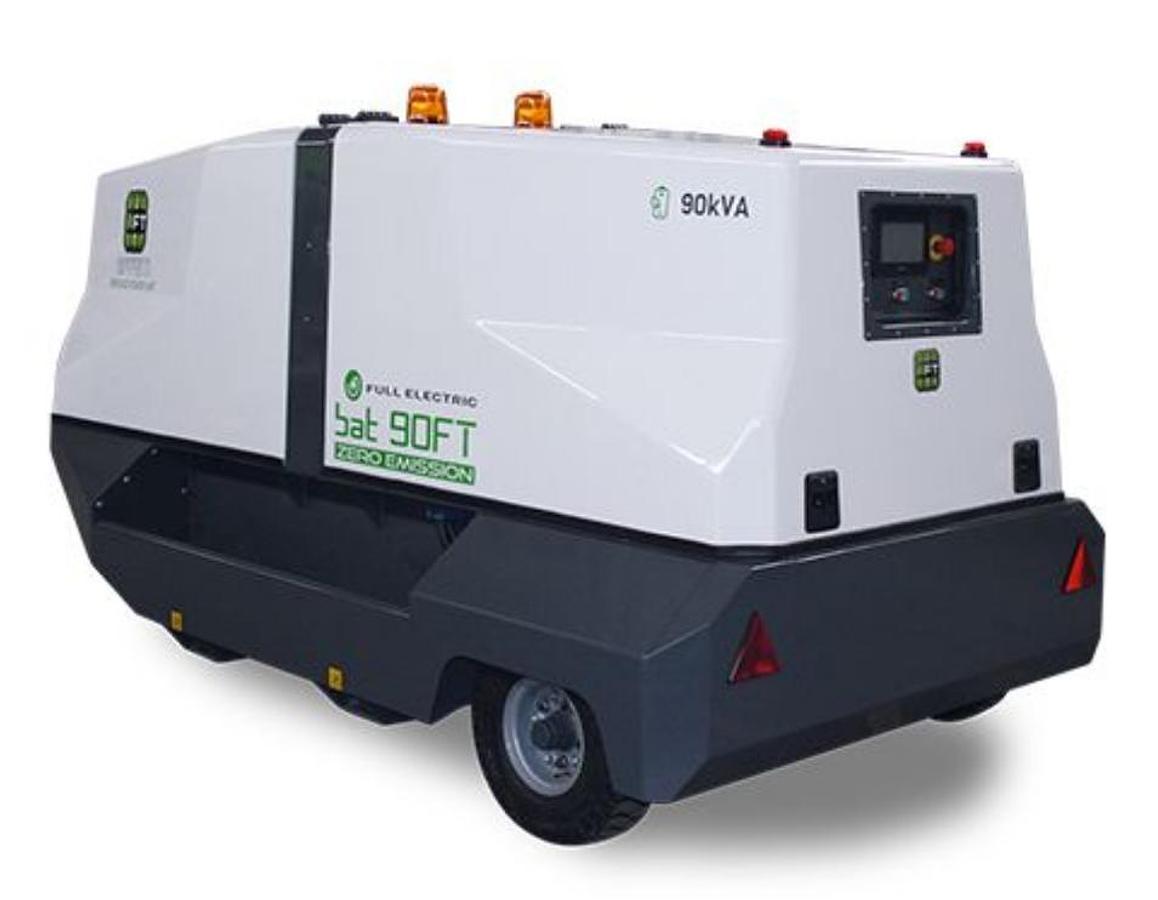

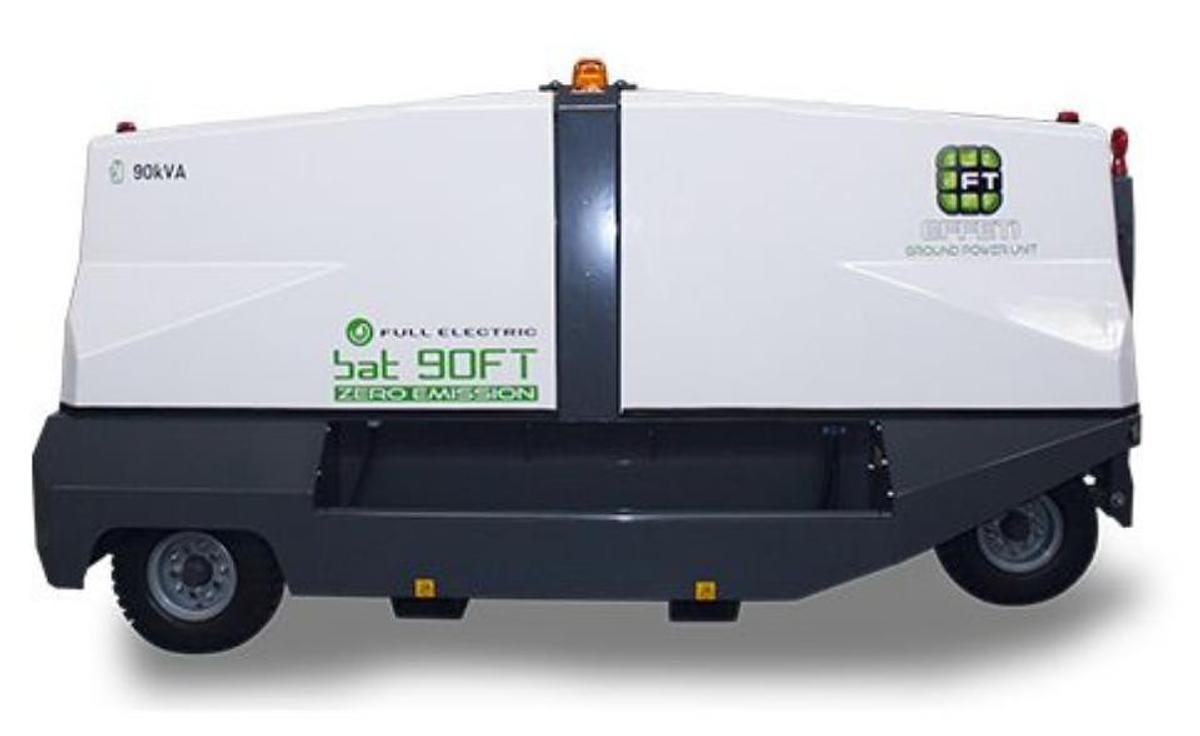

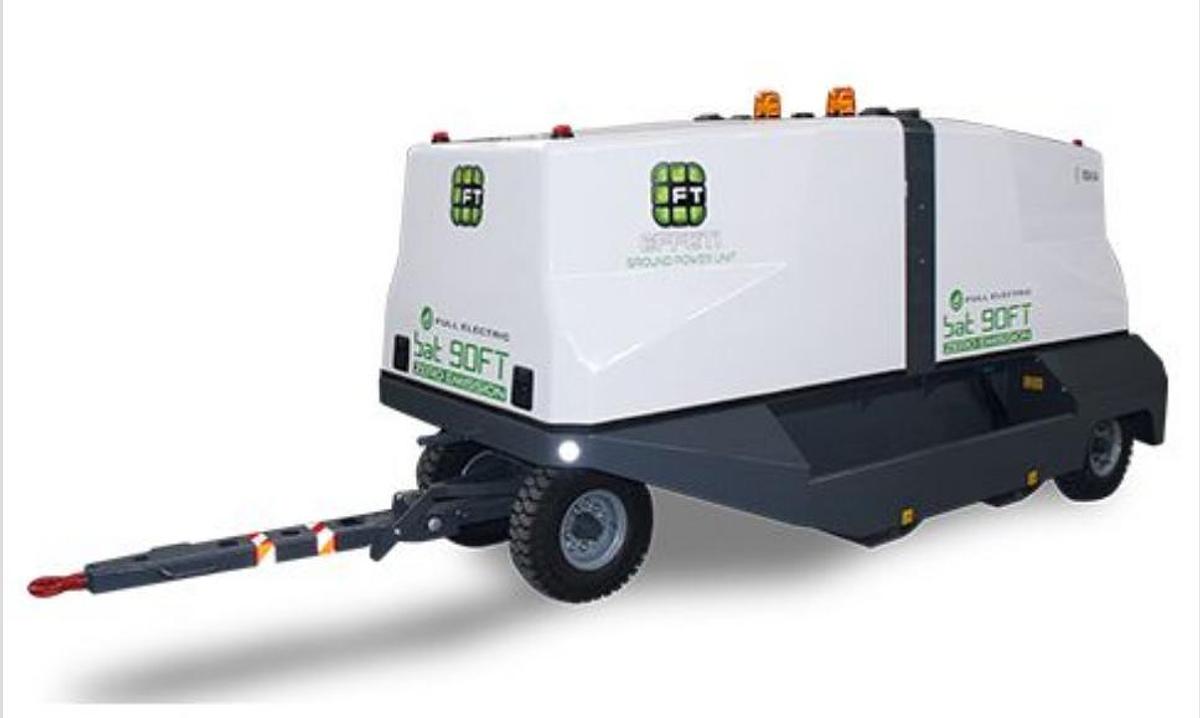

2026 Effetti eGPU Full Electric BATTERY powered ELECTRIC GPU Modello Bat FT-400Hz

Model Bat 90FT

GPU Power 90KVA

Mains input for battery recharging 380/415Vac 50Hz

BatteryLife PO4

Amps 210 Ah

Load peak144 KW

N. 1 x 115/200Vac 400Hz N. 1 x 28Vdc (option)

Cable length 115Vac and 28Vdc10 m. standard Other measure available on request

Mains input cable length 400Vac/50Hz10 m. complete with EC plug

Configuration Slow towing trailer

Max speed 30Km/h

BATTERIES

• Lithium batteries of adequate capacity
• AC-DC Inverter
• Interference suppression filters
• Battery chargers to enable a full battery echarge from 0 to 100% in 5 hours

PROTECTION/SOUNDPROOF CANOPY

• Protection/soundproof fiberglass canopy
• Gull-wing opening system for max access to internal components
• N.4 handles complete with lockable keys
• Noise level at full load 60 Db ± 3 at 7 Mt.

TRAILER

Trailer suitable for airport operation, max speed 30 Km/h complete with:

• N.4 pneumatic tires equipped with rear on-axle mounted elastic suspension.
• Front turning axle and rear fixed axle.
• Towbar complete with towing eye
• Parking brake with automatic insertion and disinsertion
• Front and rear size reflectors
• Cable trays for input and output cables complete with rollers for easy deployment
•


CONTROL PANEL

CONTROL

7” LCD display – TOUCH SCREEN with monitoring of:

• GPU input Voltage, frequency, current, power
• Voltage line 200/115Vac
• Voltage line 28Vdc
• Frequency 400Hz
• Current supplied
• Power suppled
• Working hours

PROTECTIONS

• Diodes high temperature
• Under frequency
• Over frequency
• Under voltage 200/115 Vac
• Over voltage 200/115 Vac
• Inverter input max current
• Short circuit phase-phase or phase-ground
• Inverter input max voltage
• Inverter input min voltage
• Inverter overload
• Output current overload
• Max Temperature

28Vdc PERFORMANCE

• Rectifier System 28Vdc/2000A peak
• 800A continuous
• 1200A for 10 sec
• 2000A for 5 sec

ACCESSORIES SUPPLIED

• N.1 homologated 6 kg powder fire extinguisheer
• N.1 beacon: machine ON
• N.1 beacon: low battrey warning
• N. 4 LED size indicators
• N.1 cable for battery recharging from mains

WORKING CONDITIONS

• Working temperature: from -20°C a to 45°C
