2004 TLD CHTP GM 5.9

DESCRIPTION

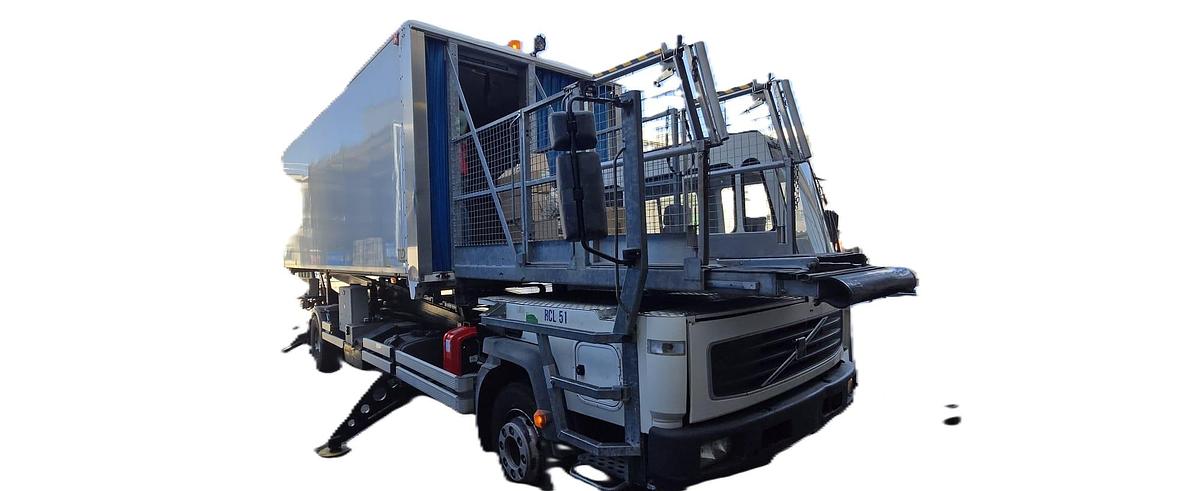

The CHTP-GM-5.9 is a self propelled vehicle equipped with a liftable lounge, for the transportation of

elderly people or handicapped people between airport concourse and aircraft door and vice-versa.

It can be installed on various commercial trucks with G.V.W. between 12 tons and 13 tons (depending

on options).

The CHTP-GM-5.9 can be used on at a very large range of aircraft having a sill height including

between 2 800mm and 5 900mm (see options available to use on the B737-300/600).

The CHTP-GM-5.9 is designed for intensive use, whatever the climate conditions, with simple and low

maintenance costs.

STANDARD FEATURES

Driver’s cab - The vehicle is equipped with full cab based on the truck original manufacturers

cab. This cab is sufficient for the driver and an attendant.

Front platform - For access to aircraft (full width), linked to passenger cabin, equipped a

front platform extension 600mm and with telescopic handrails, front bumper and anti-skid

surface.

Passenger lounge - The body of the CHTP-GM-5.9 is manufactured with sandwich

panels of 20mm thickness (2 painted steel plates with polyurethane foam).
