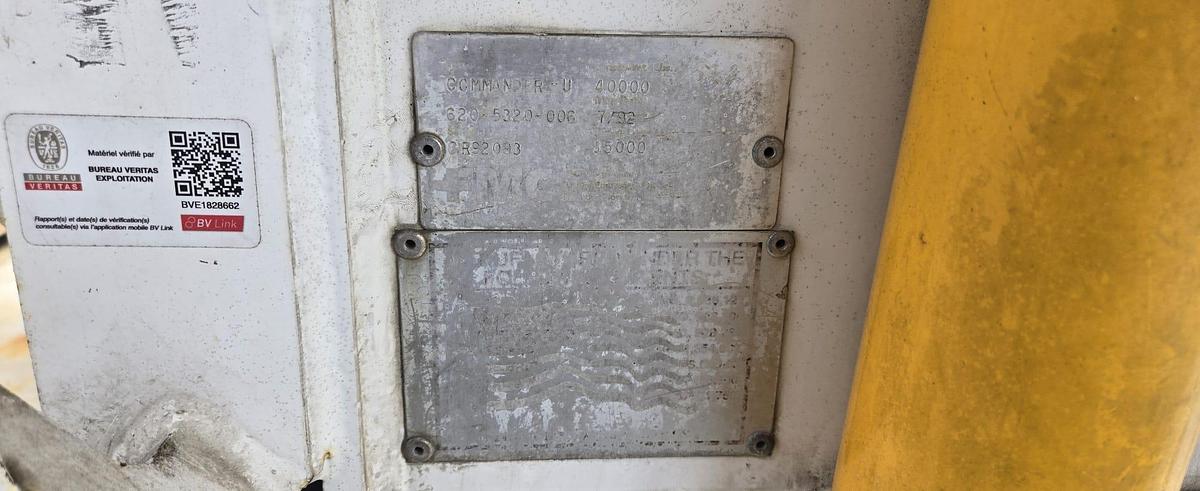

1992 FMC Commander 15U

GENERAL

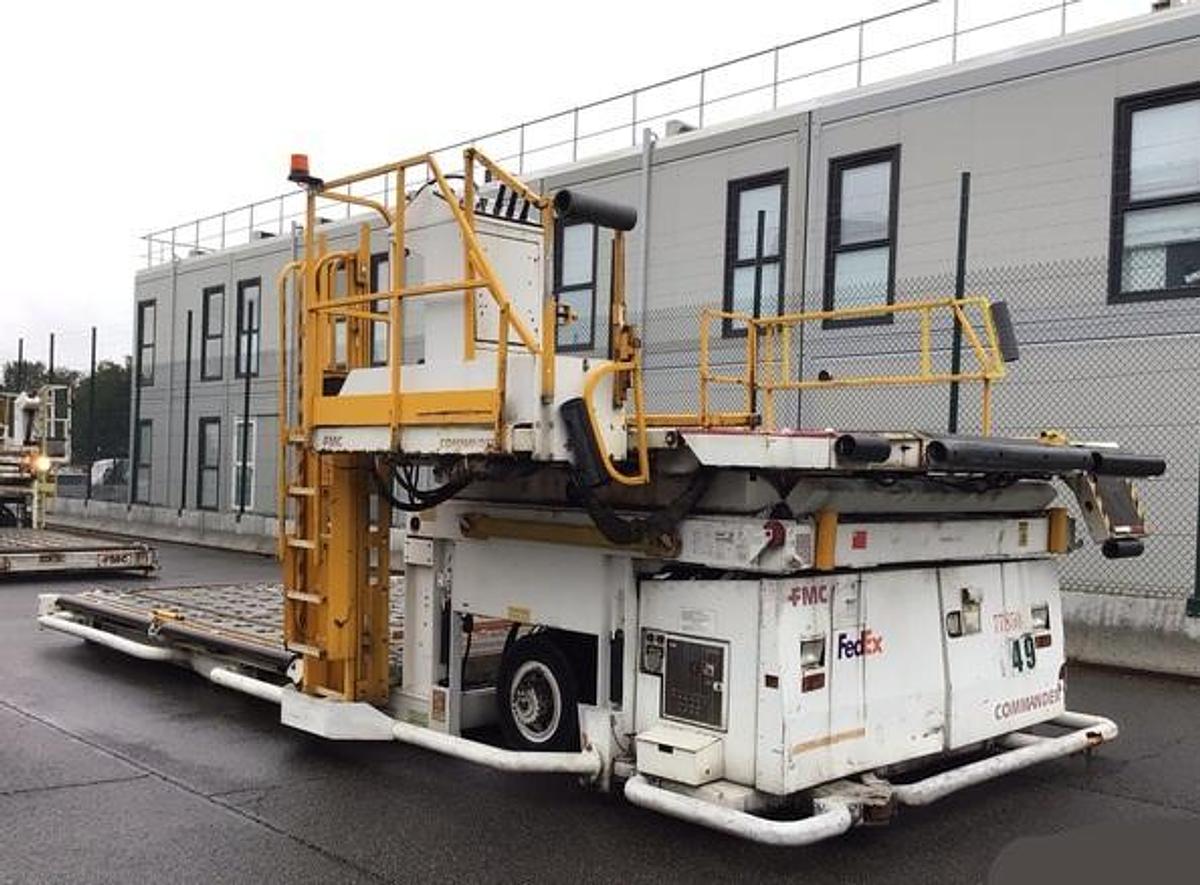

The COMMANDER loader is a single-operator, self -propelled vehicle capable of lifting and transferring cargo weighing up to 7,000 kilograms (15,500 lb). It can handle containers or pallets and service a broad range of aircraft.

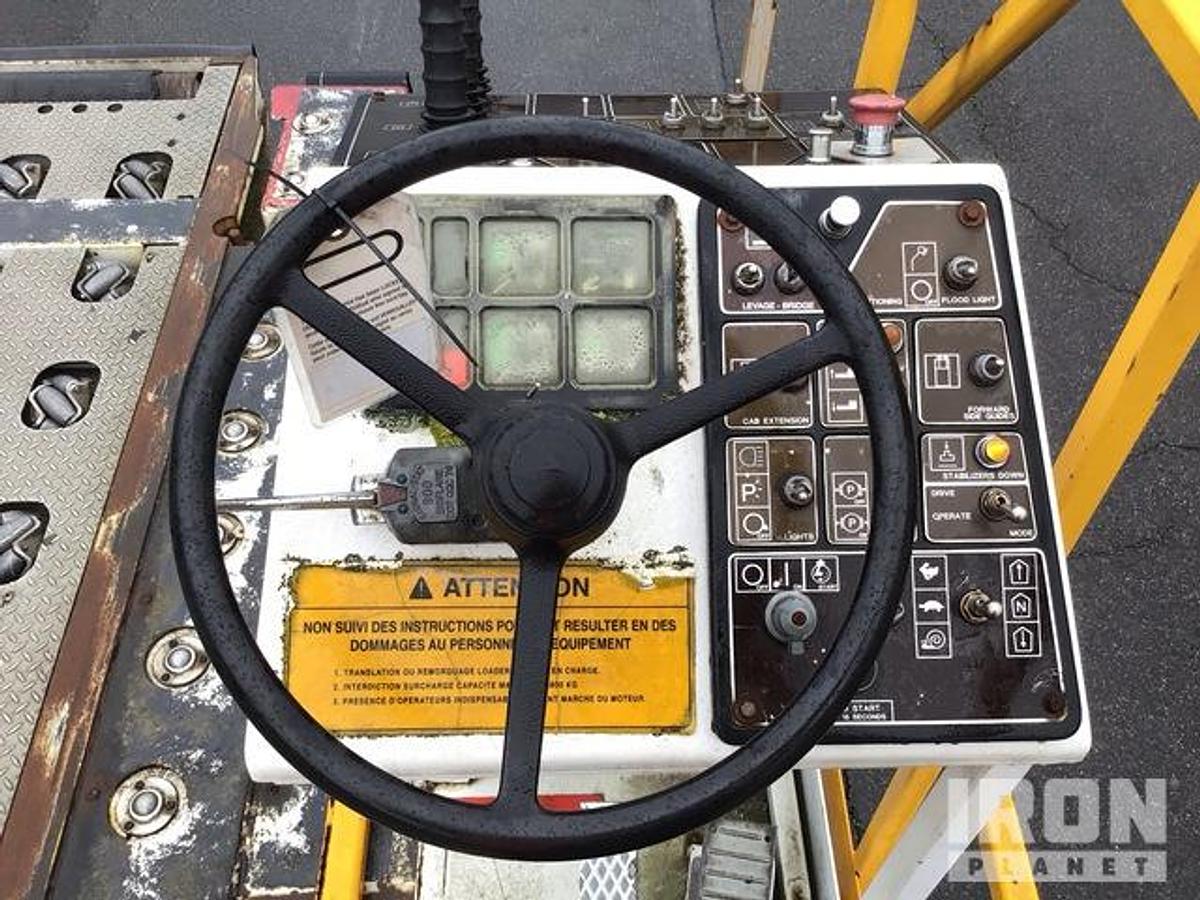

The COMMANDER utilizes the latest in technology and incorporates modular power units, improved conveying system; electrical systems and logic element integrated hydraulic circuits. The use of light emitting diodes (Leeds) on a system status panel simplifies troubleshooting. Power units can be diesel, gasoline or 72-volt DC; the electrical system is a relay system, 24-volt DC; the hydraulic system is closed-center, and load sensing. Two hydraulic motors power the planetary drive wheels to propel the loader.

CAPABILITIES

The minimum rear platform height of 460 mm (18 in.) facilitates transfer of cargo from surface vehicles. The turning radius of 7.9 meters (26 ft) and inching capability of the propulsion system provide safe and precise control for positioning the loader. The maximum height to which cargo can be lifted is 3.55 meters (140 in). An optional double scissors assembly for the bridge can increase the lift height to 5.6 meters (220 in). Wide load capability is also available as an option.
