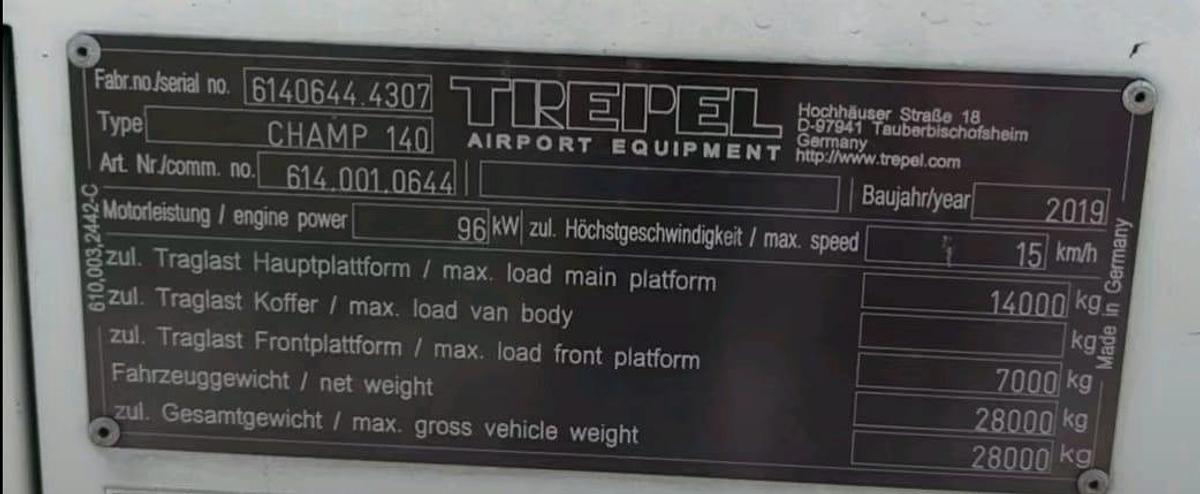

Performance CHAMP 140

Dimensions L x W x H 11.400 x 4.400 x 3.900 mm (standard configuration)

Capacity 14.000 kg main platform lift and transfer

14.000 kg front platform transfer

Lifting height front / main platform 1.900 to 5.600 mm / 485 to 5.600 mm

Loading width (between guide rails) 3.250 mm

Driving speed 15 km/h

Gradability 5 %

Turning radius 13.000 mm

Design

Engine Deutz 4-cylinder diesel type TCD 2012 L04 2V (COM IIIA / EPA-TIER 3)

Transmission / axles Open circuit hydrostatic drive system on steering front axle,

bogie wheel system on rear axle

Steering Hydraulic power steering

Braking system Dual circuit hydraulic multiple disc brake, additional spring-loaded

emergency parking brake, dynamic brake system

Stabilisers 6 hydraulically operated stabilisers

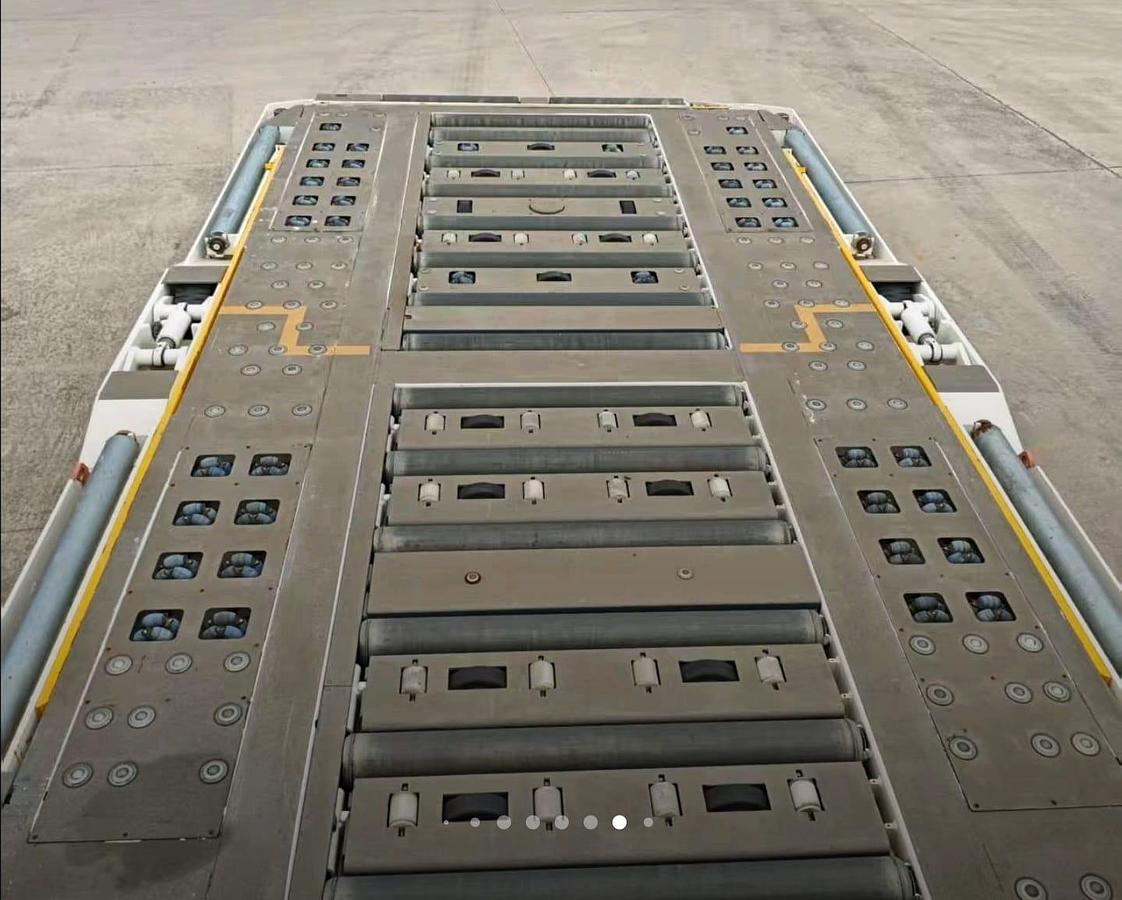

Conveying system Zinc-plated steel rollers for longitudinal transfer, side loading and rotating

on rear of main platform, hydraulically adjustable guide rails on front platform, transversal drive units on front platform

Hydraulic system Central hydraulic valve block, valves fitted with control light, electrically powered hydraulic emergency system to lower

platforms and lift stabilisers

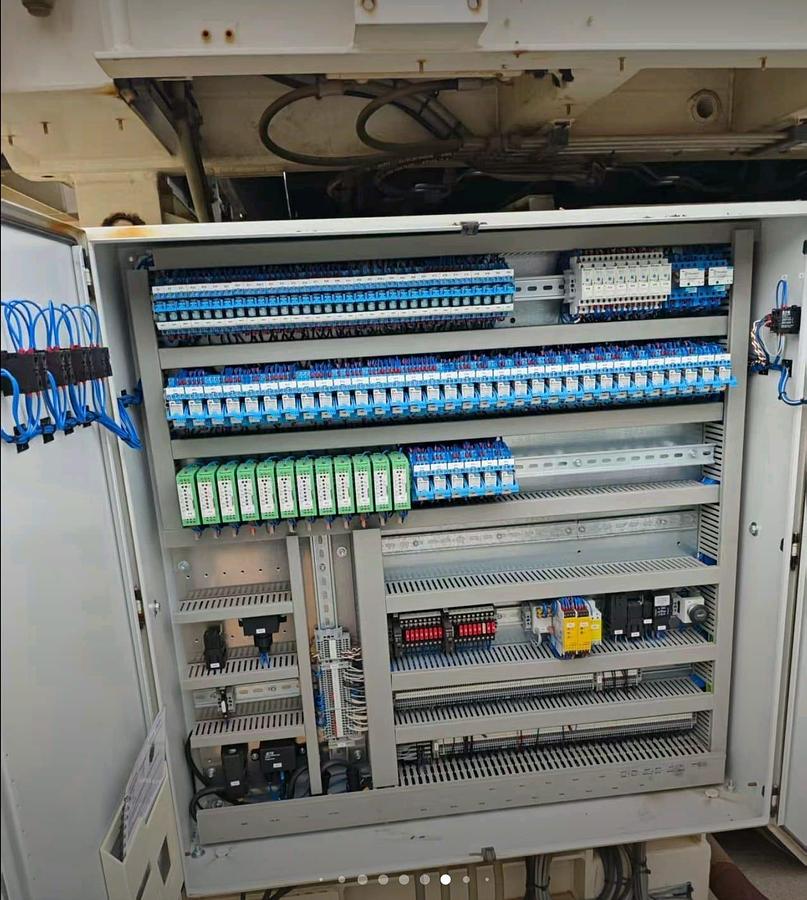

Electric system 24 V, relay controlled

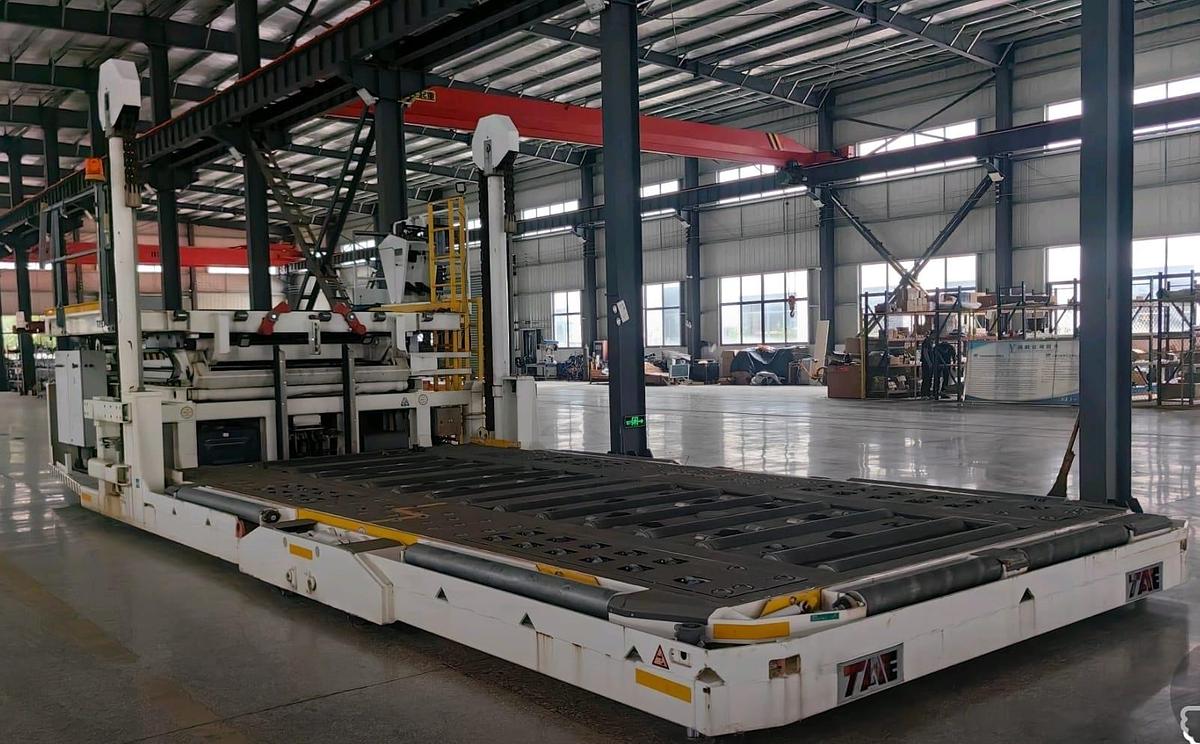

2019 Aircraft cargo loader
